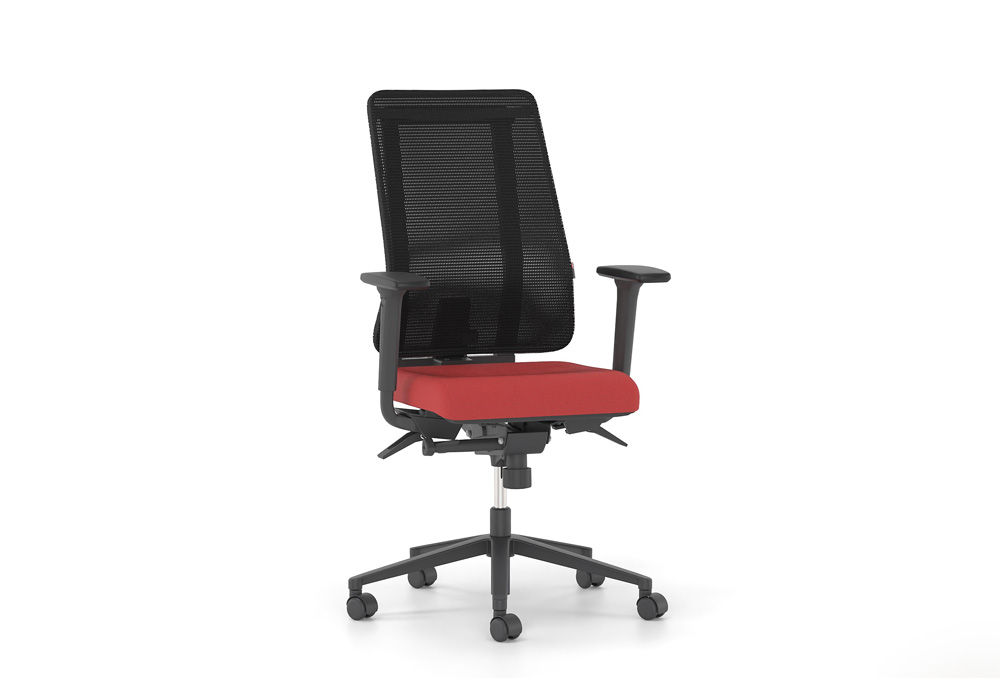

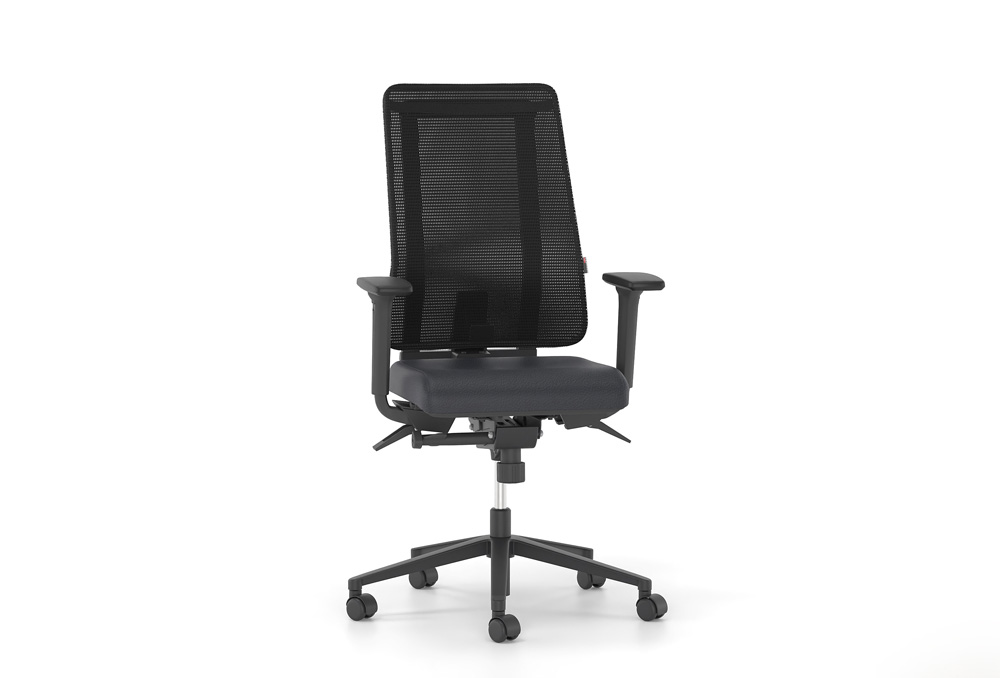

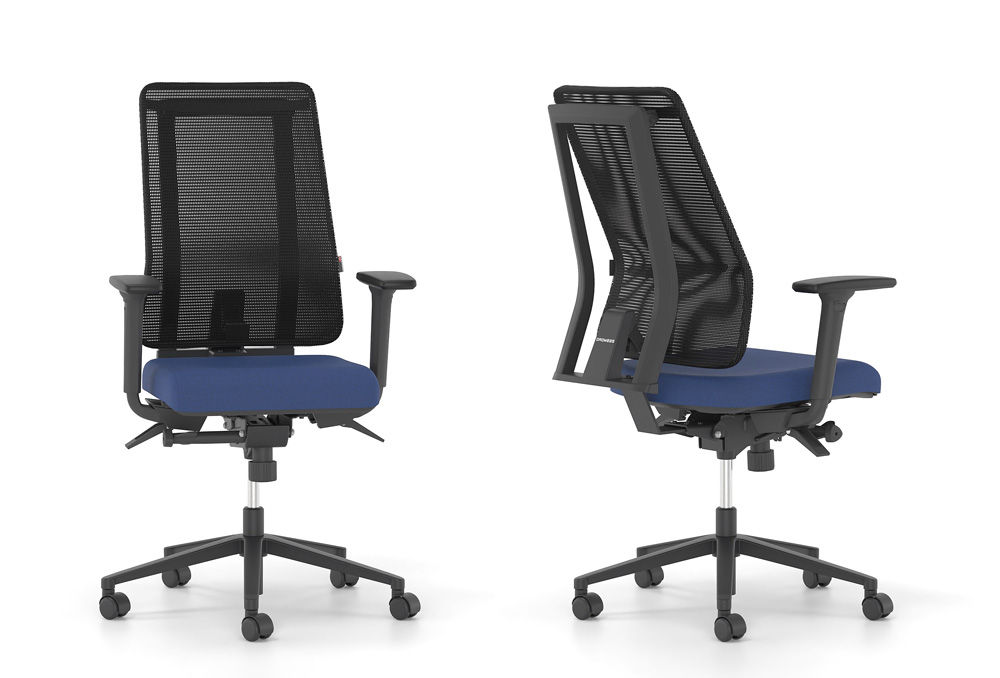

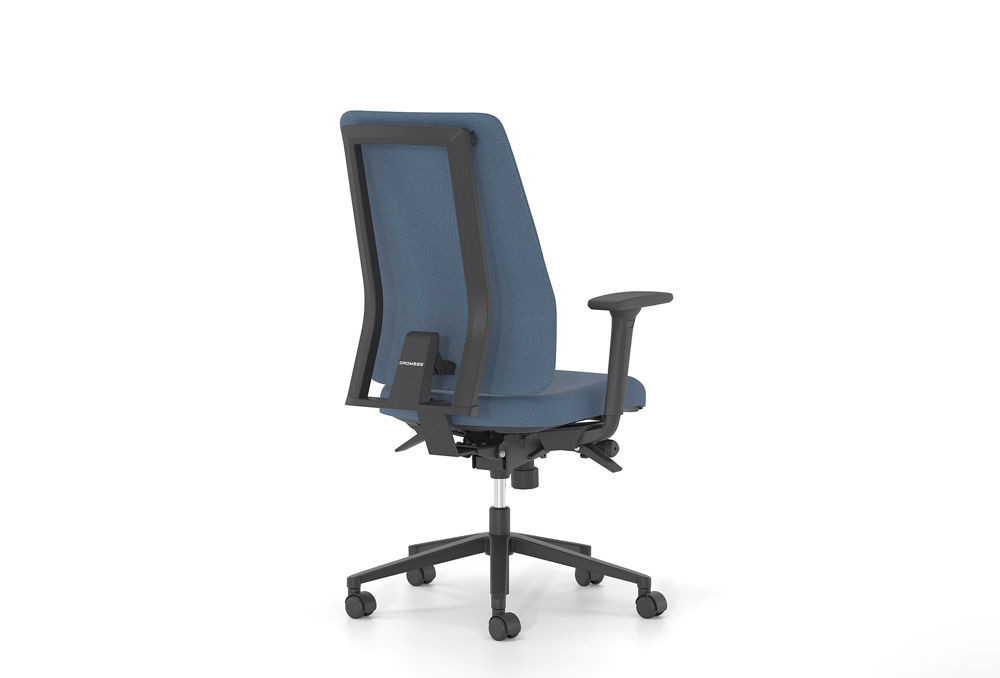

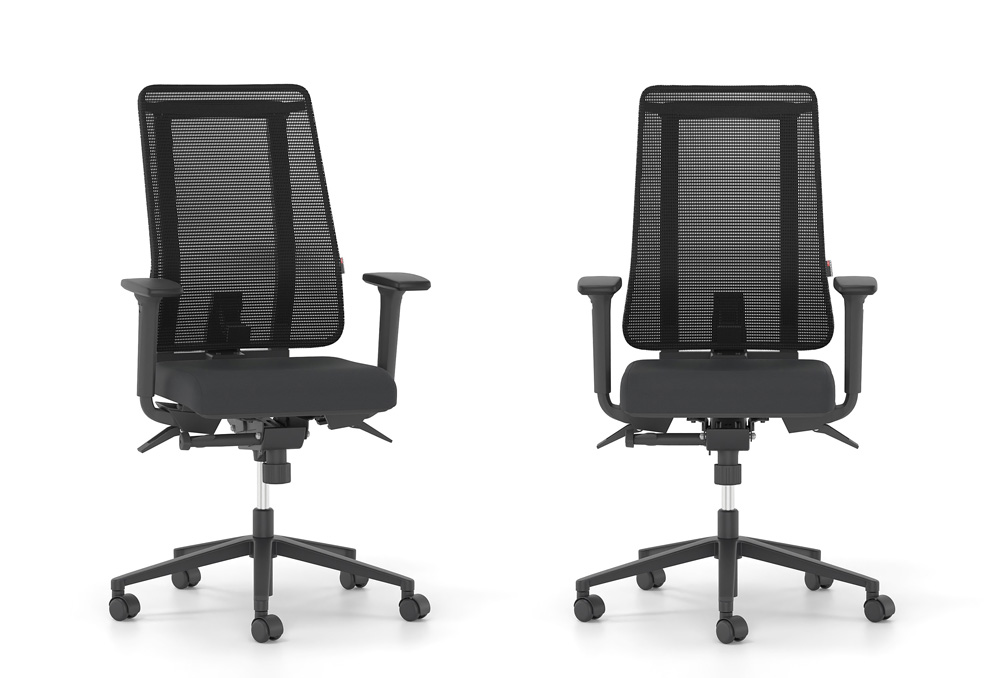

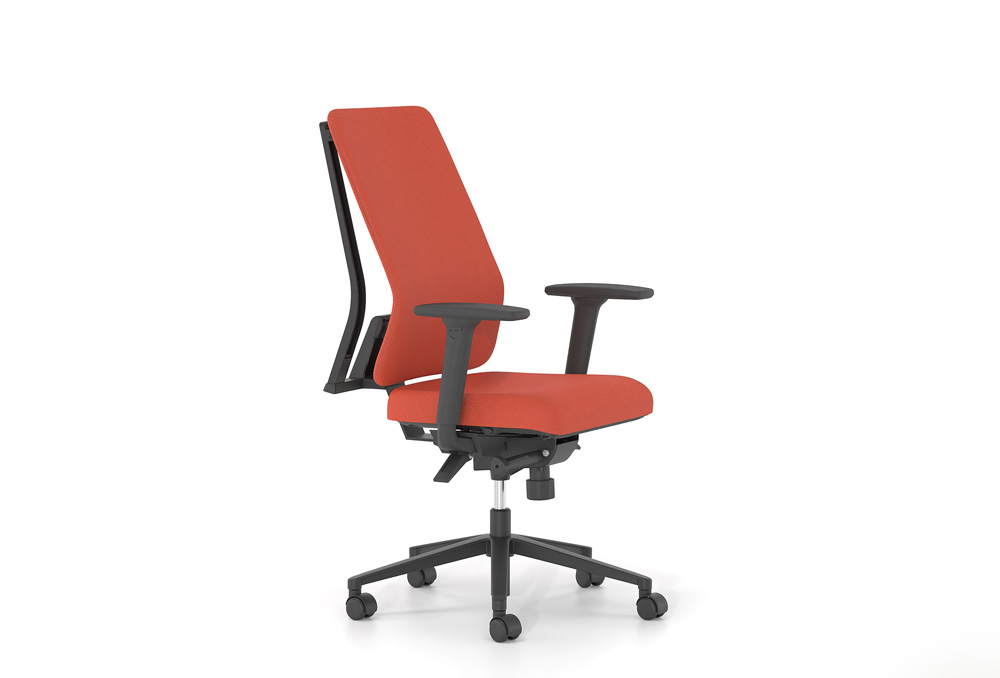

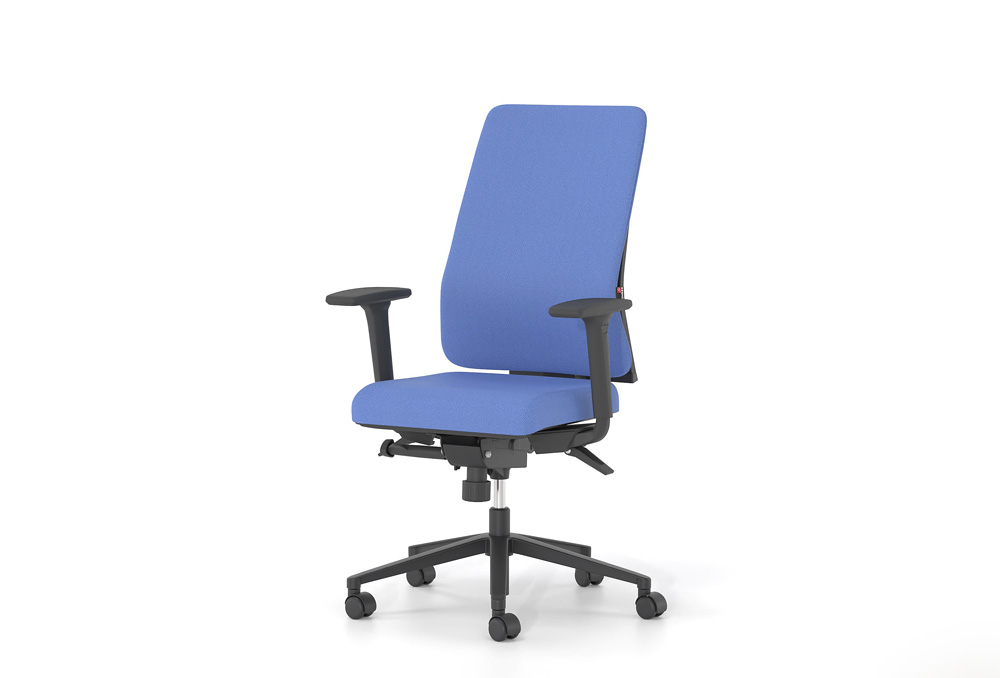

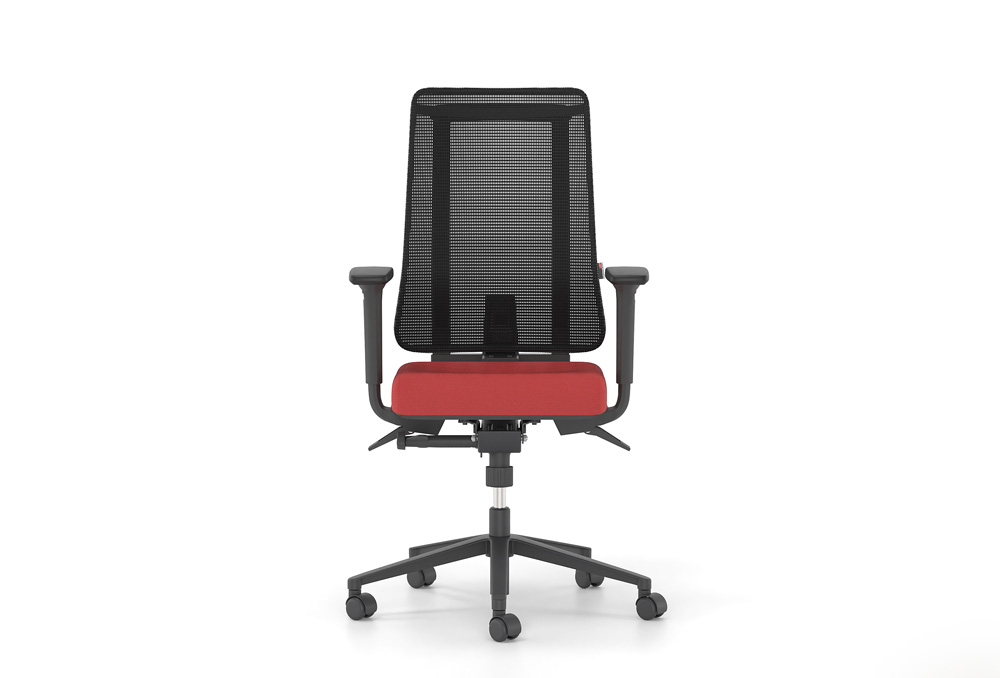

The REFLEX chair responds directly to body posture change during work, with automatic adjustment of the backrest on the back of the user.
The base is five-star made of die-casted aluminium, polished or painted with electrostatic paint.
Seat height adjustment with gas piston.

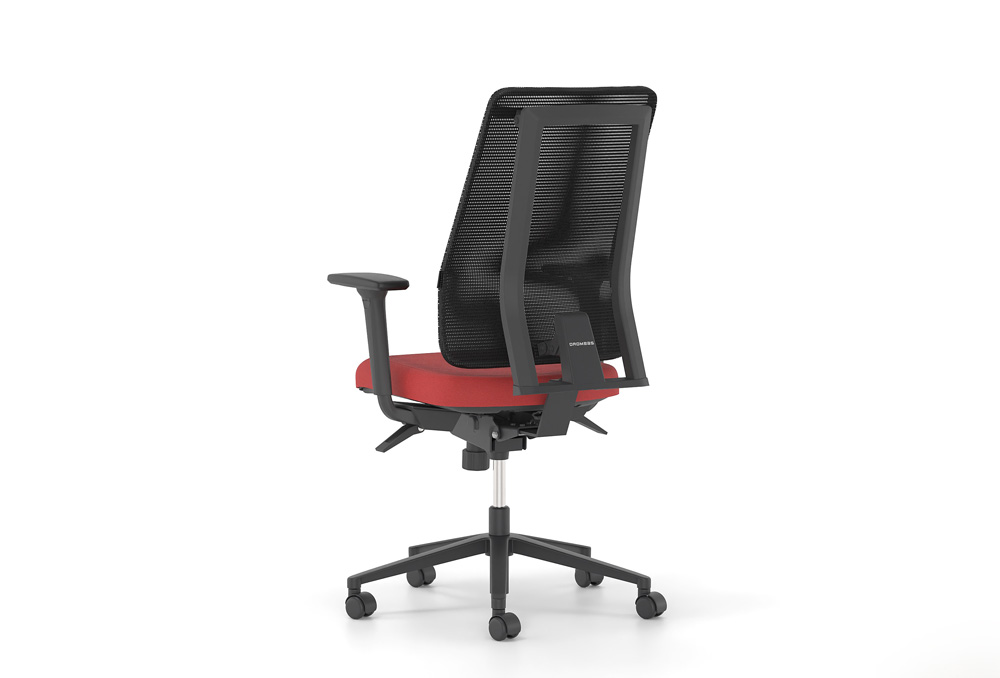

The back has an anatomical frame on which a net is placed, in such a way that the pressure is evenly distributed. The back has a mechanism so that it adapts to the natural movements of the body.
The Synchro mechanism allows for a 5-position synchronized back and seat recline. The mechanism features an anti-panic system for smooth and controlled back-up and adjusting system for balanced tilt depending on user's weight.
The seat arms are adjusted in height and width.
Selection of upholstery from seven categories with a wide variety of colors.
Help us improve our support
We are always trying to improve how we support you. Let us know about your experience - use the slider below to tell us how valuable you found the information on this page:

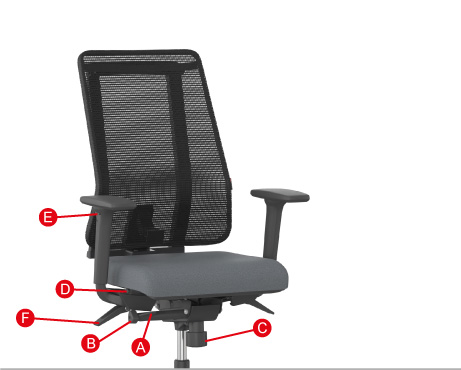

Seat height adjustment
For adjustment of the seat height, find the flaps on the handle A underneath the right side of the seat. While seated push the flap onwards to lower the seat height. To raise the seat, get up and repeat the above procedure.
Tilt adjustment of the backrest
There are five different positions for a seat - back reclination. To choose the desired position, find the crank B beneath the seat, at the right side. Turn clockwise once to unlock the backrest. Move your weight backwards; find a convenient position and then turn the crank B clockwise, once again, to lock in the desired position. Having unlocked the seat and the back, you can change the position using the pressure of your body.
Backrest tension adjustment
The hardness of the tilt of the seat and back can be adjusted depending on the user’s weight through the crank C which is located below the seat.
Seat Depth Adjustment
On the right side of the seat, there is a small button D. while seated, press this adjusting button and lean against the backrest. Then move the seat forward against the gas spring pressure and release the button when the seat reaches the desired position. The seat can be adjusted up to 5 cm.
Adjustment of the armrest (4D)
The height of the armrests can be adjusted using the E button.
Pushing the E button and move the armrest up or down. When you find the desired height, release the button.
The armrests move widthwise through the lever F present at the bottom of the seat. Push lever F down to release the armrest. Move the armrest in and out until you find the desired position. Push lever F up to lock them again.
The surface of the armrests can be moved forward and backwards by pressing towards the desired direction. The armrest pads can be rotated right and left with automatic locking in the preferred position.
Please, click for read & download :
Short technical specification (pdf format)
Technical specification (pdf format)
Assembly drawing (link)
Users manual (link)
CAD Data (dwg format - The scale is defined by printing)
