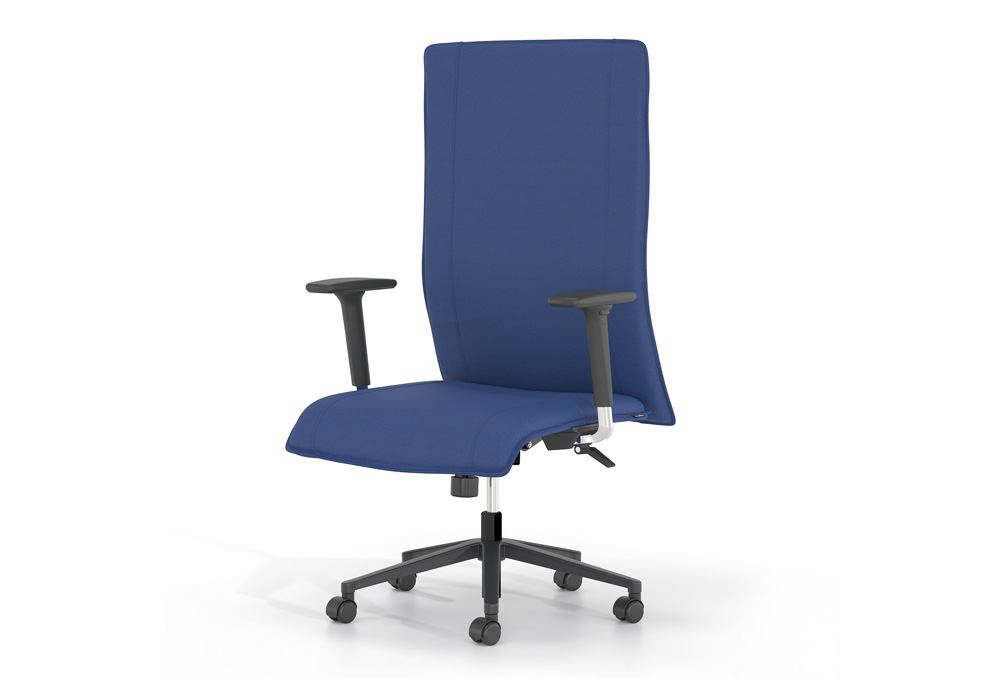

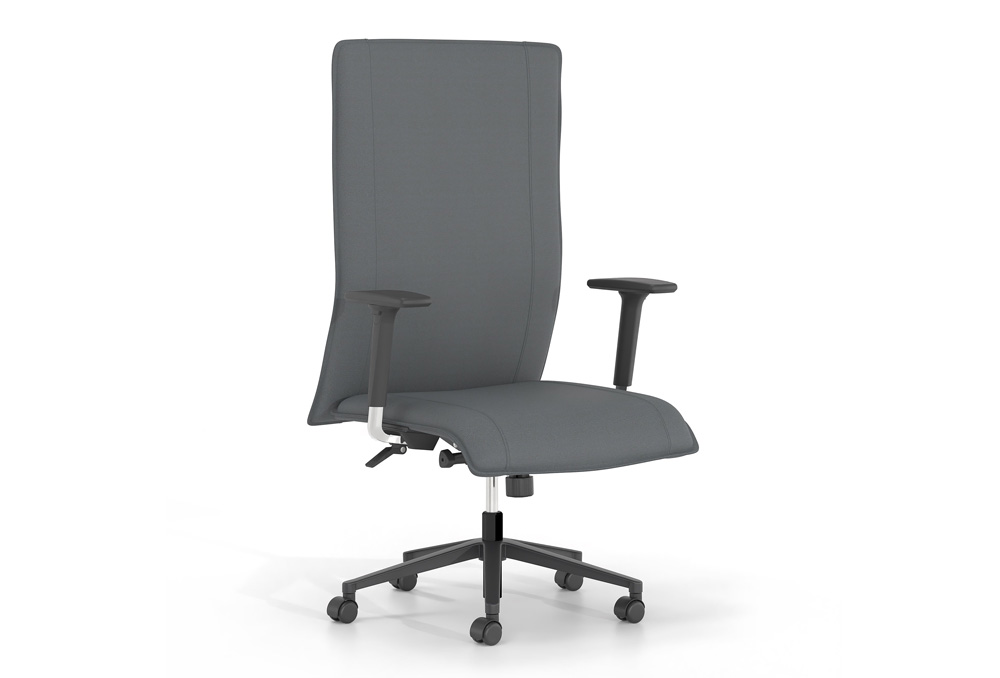

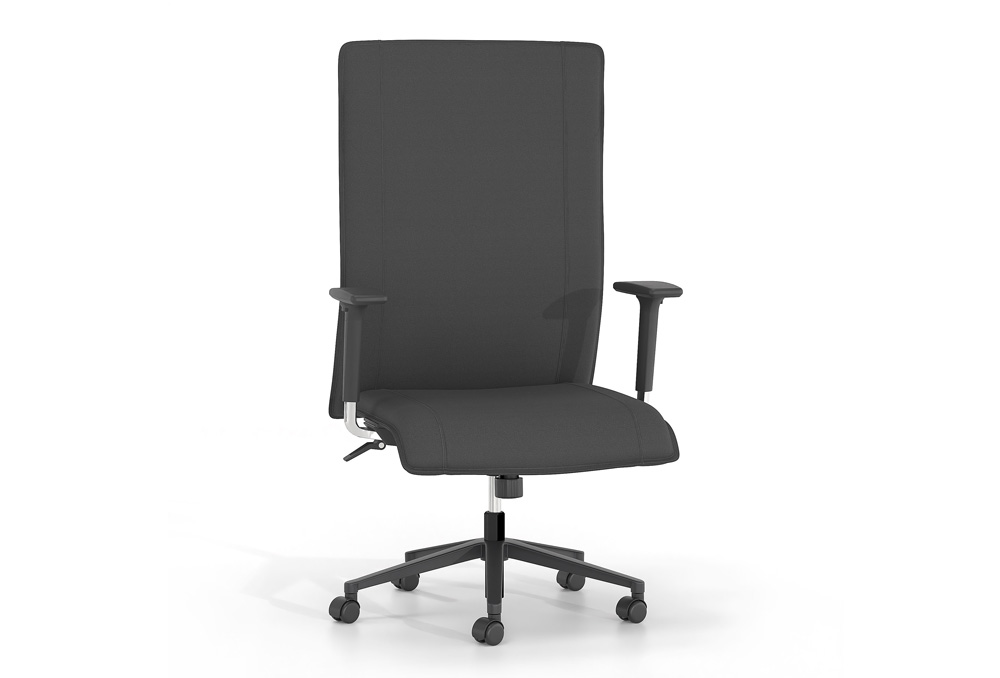

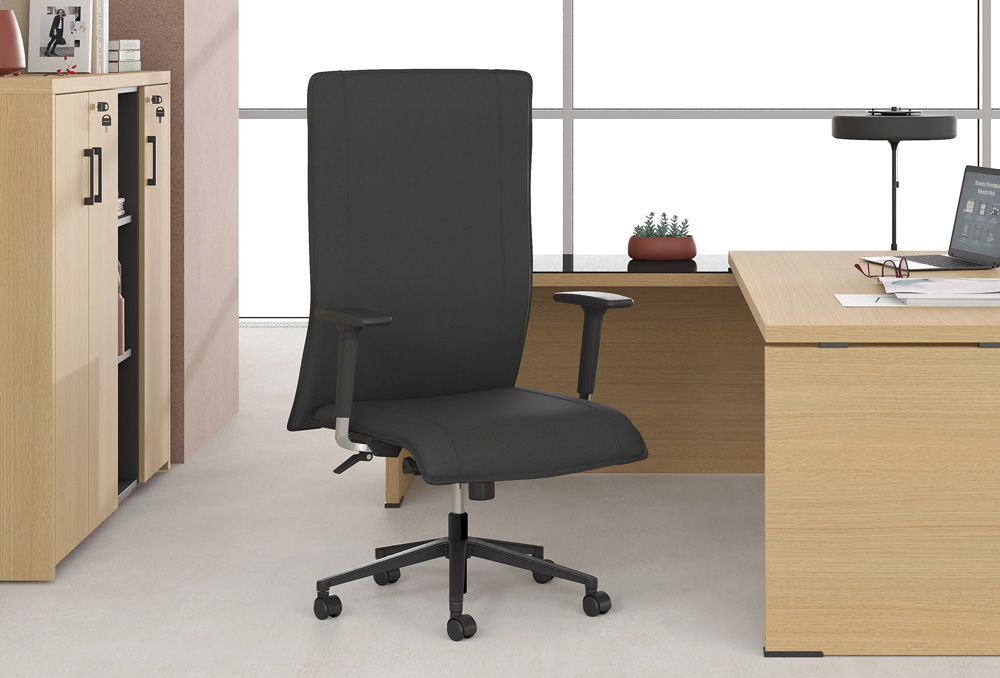

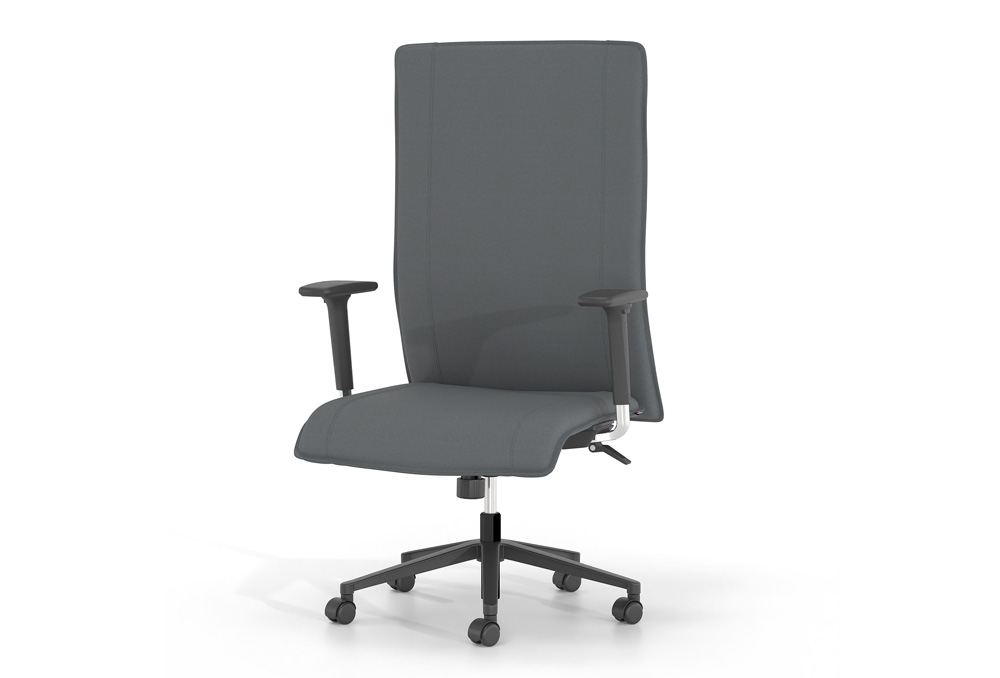

Comfort in your workplace creates a balance that improves productivity and well-being. The ATLAS chair correctly supports posture thanks to its ergonomic design. The larger size and metal construction make it particularly comfortable and sturdy. It is certified for people weighing up to 160 kg.

The ATLAS chair correctly supports posture thanks to its ergonomic design. The larger size and metal construction make it particularly comfortable and sturdy. It is certified for people weighing up to 160 kg.

  • Synchro mechanism that allows the synchronized seat - back tilt with the possibility of stabilization in 5 positions, "Anti-panic" system for smooth and controlled back restoration and adjustment system for balanced reclining depending on the user's weight.
  • Height-adjustable arms (adjustment width 70 mm) and width (395-450 mm). Their contact surface rotates ± 15 °. It is soft for greater comfort and can be moved back and forth in 6 positions.
  • Five-star base made of molded aluminum painted in a color of your choice or polished.
  • Choice of upholstery and color of fabric, artificial leather or leather.

 Atlas

Help us improve our support

We are always trying to improve how we support you. Let us know about your experience - use the slider below to tell us how valuable you found the information on this page:

Atlas

Atlas

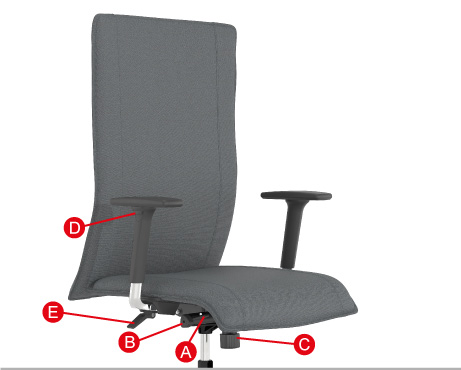

AtlasSeat height adjustment
For adjustment of the seat height, find the flaps on the handle A underneath the right side of the seat. While seated push the flap onwards to lower the seat height. To raise the seat, get up and repeat the above procedure.



AtlasTilt adjustment of the backrest
There are five different positions for a seat - back reclination. To choose the desired position, find the crank B beneath the seat, at the right side. Turn clockwise once to unlock the backrest. Move your weight backwards; find a convenient position and then turn the crank B clockwise, once again, to lock in the desired position. Having unlocked the seat and the back, you can change the position using the pressure of your body.



AtlasBackrest tension adjustment
The hardness of the tilt of the seat and back can be adjusted depending on the user’s weight through the crank C which is located below the seat.



AtlasAdjustment of the armrest (4D)
The height of the armrests can be adjusted using the D button.
Pushing the D button and move the armrest up or down. When you find the desired height, release the button.
The armrests move widthwise through the lever E present at the bottom of the seat. Push lever E down to release the armrest. Move the armrest in and out until you find the desired position. Push lever E up to lock them again.
The surface of the armrests can be moved forward and backwards by pressing towards the desired direction. The armrest pads can be rotated right and left with automatic locking in the preferred position.

Please, click for read & download :

Brochure (pdf format)

Short technical specification (pdf format)

Technical specification (pdf format)

Assembly drawing (link)

Users manual (link)

CAD Data (dwg format - The scale is defined by printing)
