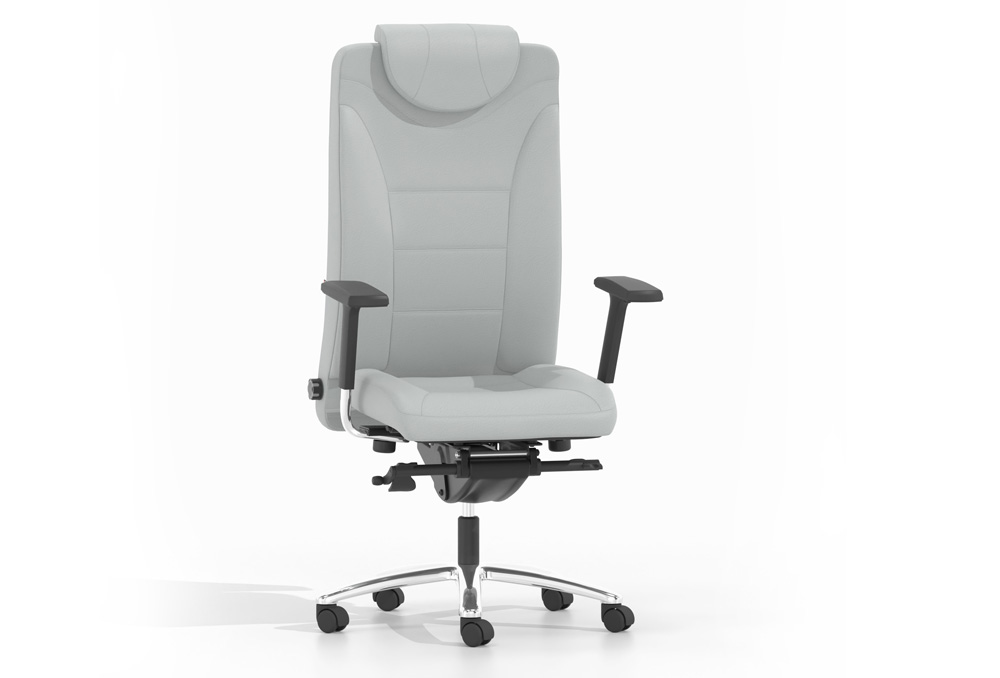

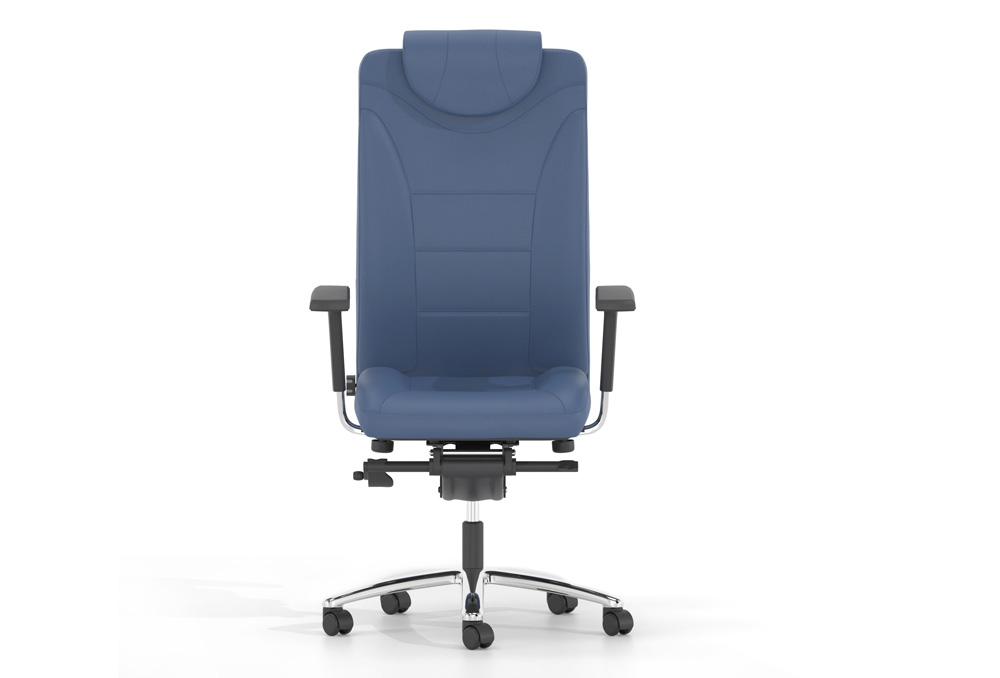

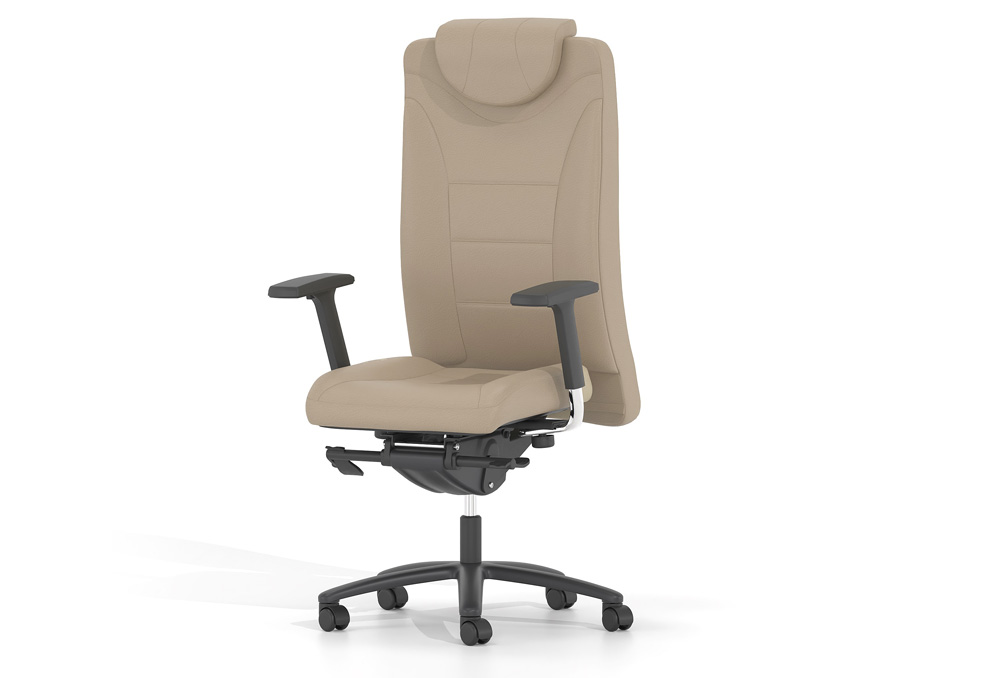

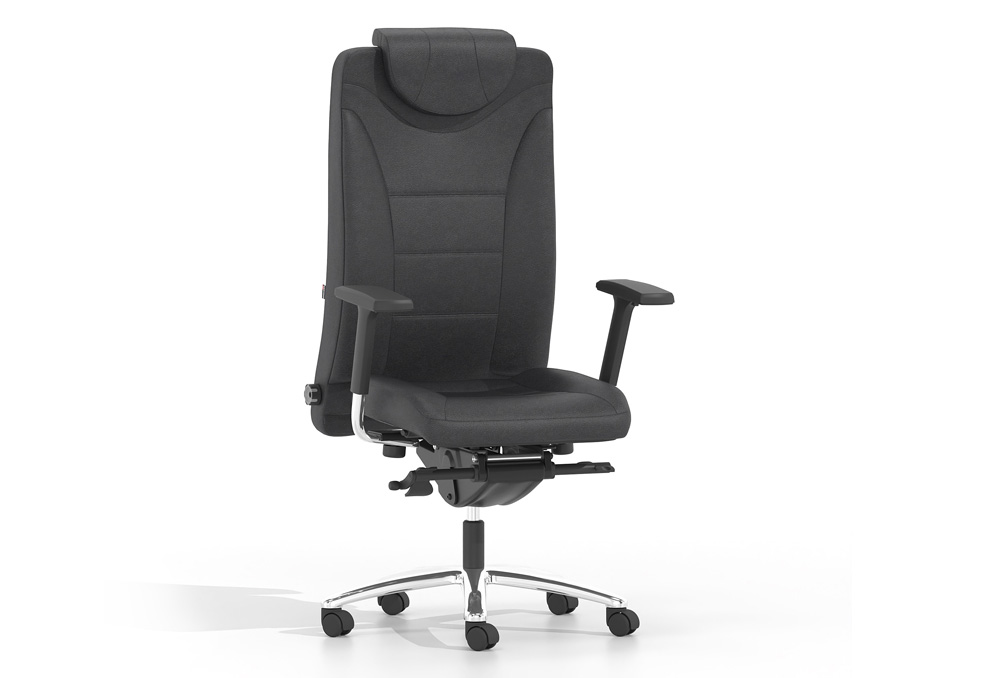

Managerial swivel chair APOLLO
The star base of the chair is made of die-cast aluminium and has a diameter of 660 mm. The surface finish can be either powder coated or polished.
The activation of the height adjusting gas lift is achieved through a lever which is accessible sideways under the seat.
The seating mechanism is a Synchro-mechanism and is made of die-cast aluminium and steel. It allows the simultaneous dynamic movement of the seat by 11° and the backrest by 18° and provides 7 locking positions. The mechanism is equipped with an «anti-panic» function and can be adjusted according to the user weight. The depth of the seat of the chair is adjusted horizontally from 0 – 60 mm and can be fixed in 7 positions.
Upholstery selection out of 7 categories and a wide variety of colours.
Help us improve our support
We are always trying to improve how we support you. Let us know about your experience - use the slider below to tell us how valuable you found the information on this page:
Seat Height Adjustment

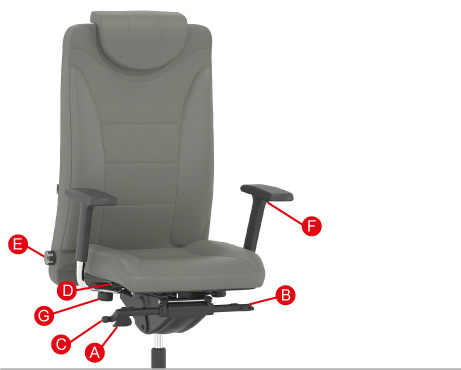

For adjusting the seat height, you will find a lever A underneath the right side of the seat. While seated, pull the lever upwards to lower the seat height. When you take your weight off the seat and you pull the lever upwards, the seat rises.
Synchro Tilt Mechanism
On the left side under the seat is a handle B that you can press upwards while seated. This activates the combined (synchronized) tilting mechanism of seat and backrest.
The backrest tension can be infinitely adjusted to your bodyweight via the crank C which is located below the seat.
Seat Depth Adjustment
On the right side of the seat, there is a small button F. while seated, press this adjusting button and lean against the backrest.
Then move the seat forward against the gas spring pressure and release the button when the seat reaches the desired position. The seat can be adjusted up to 6 cm.
For better lumbar support, rotate the E rotor forward until you feel that the brace touches the lumbar spine. Then, if you want to adjust the height of the lumbar support, pull the E rotor outwards and rotate it, forward or backward, until you find the desired point.
Adjustment of the armrest (4D)
The height of the armrests can be adjusted using the F button. Pushing the F button and move the armrest up or down.
When you find the desired height, release the button.
The arms move in width through the rotor G located at the bottom of the seat. Turn the rotor G by hand to loosen it, move the arm in and out until you find the desired position and rotate the rotor again to stabilize.
The surface of the armrests can be moved forward and backwards by pressing towards the desired direction.
The armrest pads can be rotated right and left with automatic locking in the preferred position.
Please, click for read & download :
Brochure (pdf format)
Short technical specification (pdf format)
Technical specification (pdf format)
Assembly drawing (link)
Users manual (link)
CAD Data (dwg format - The scale is defined by printing)
