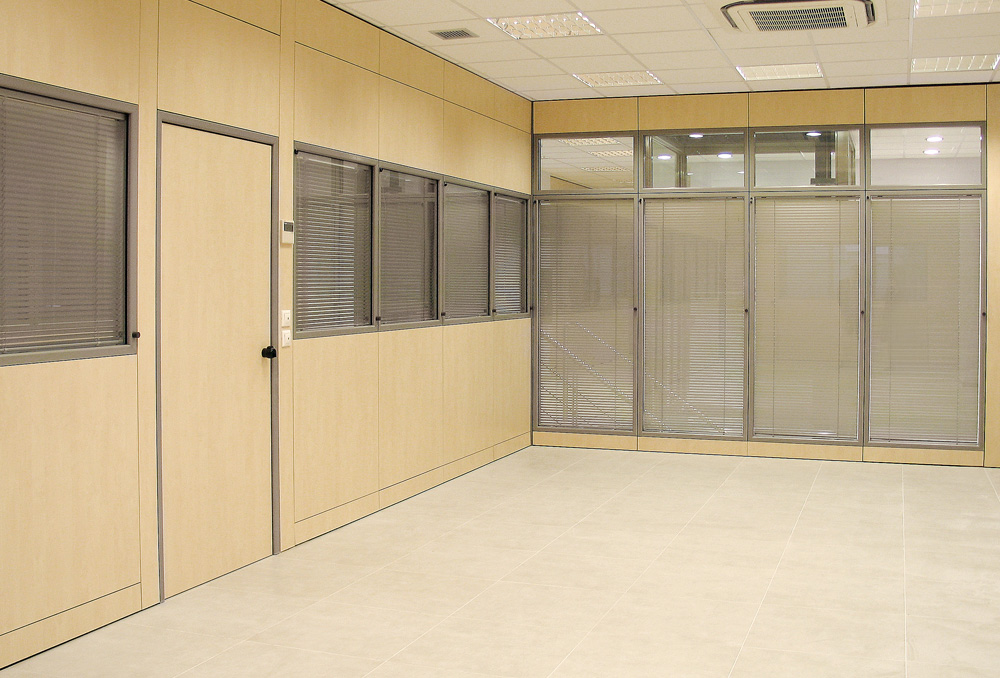

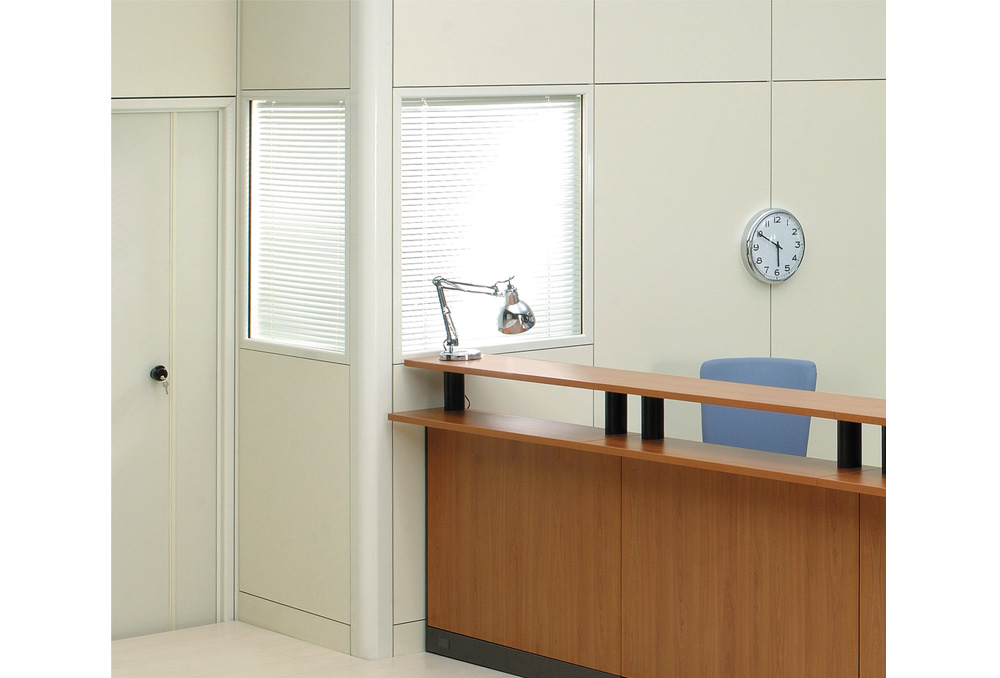

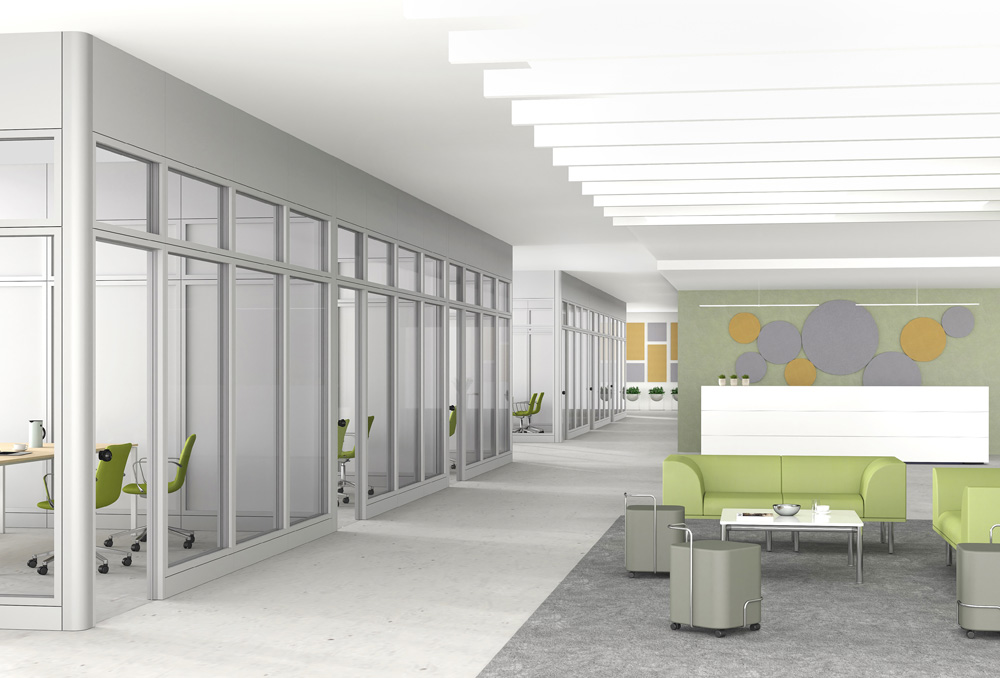

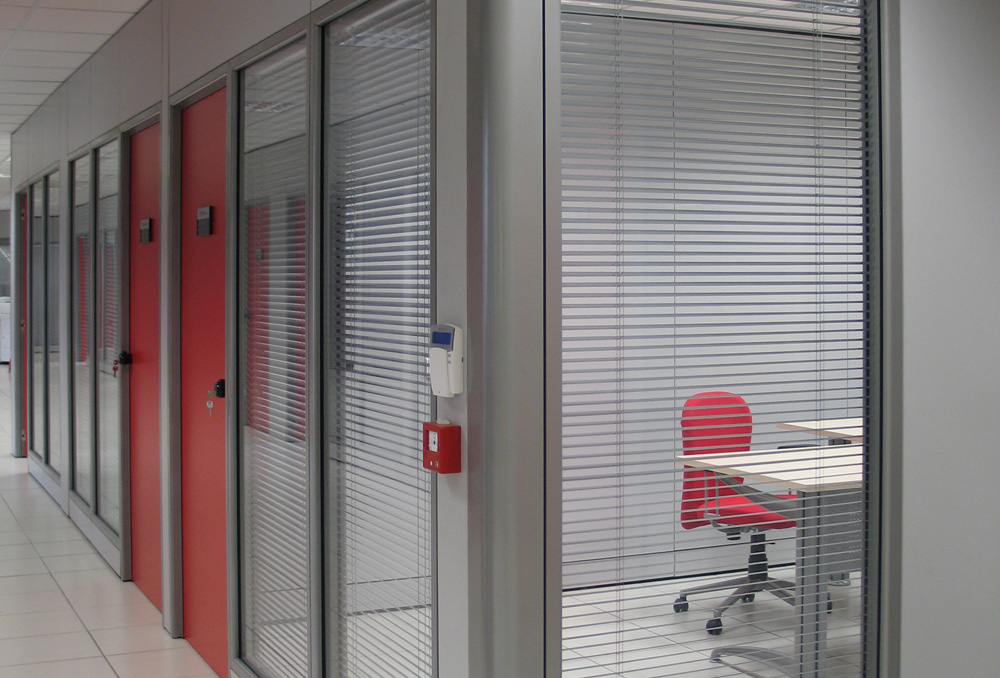

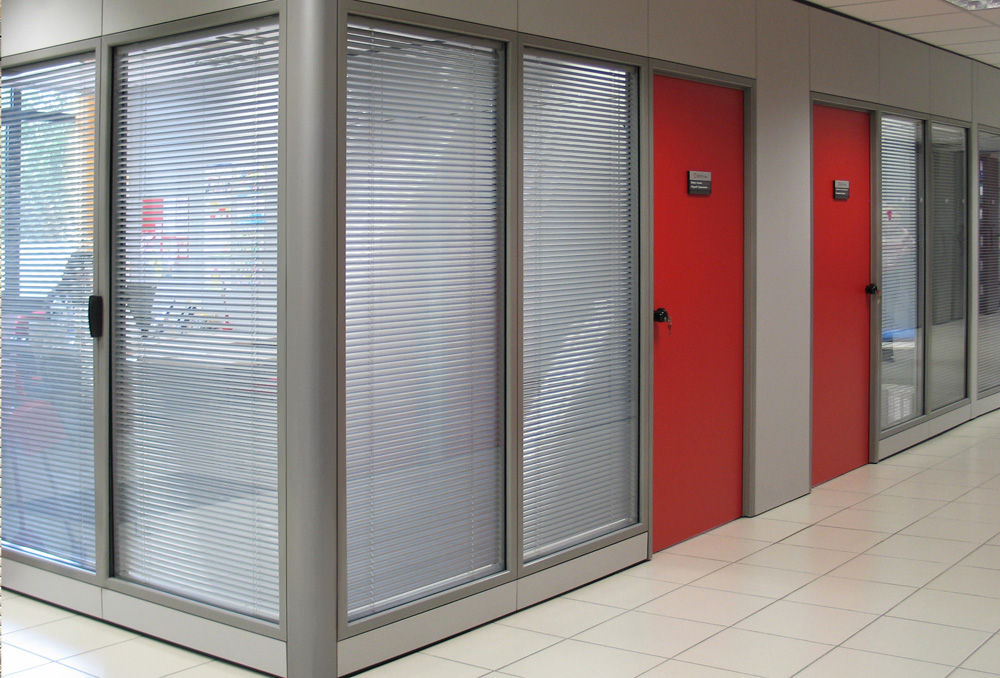

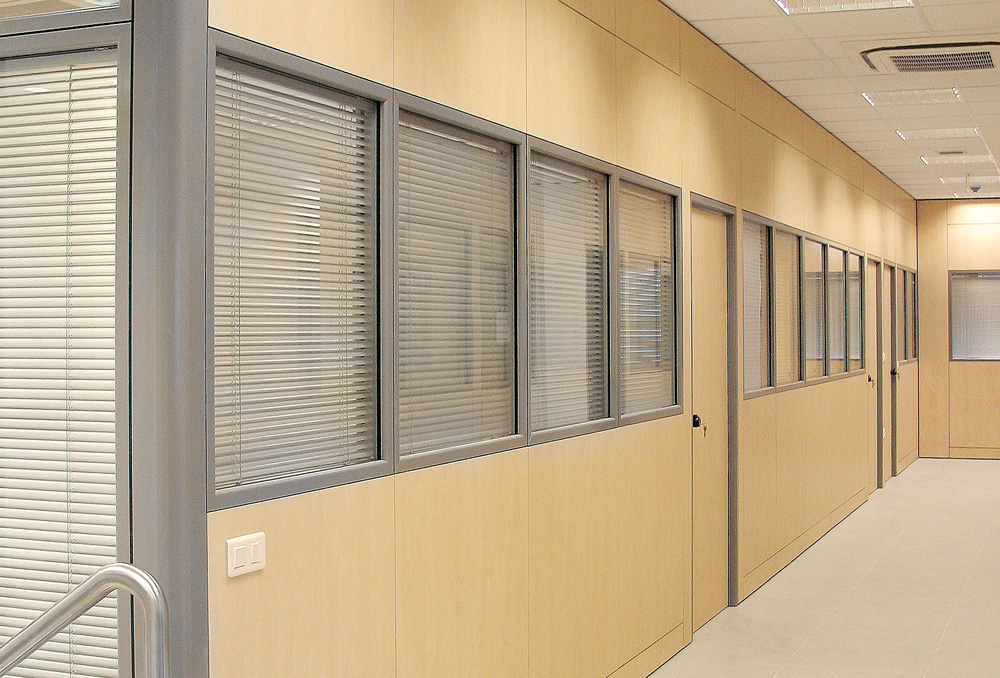

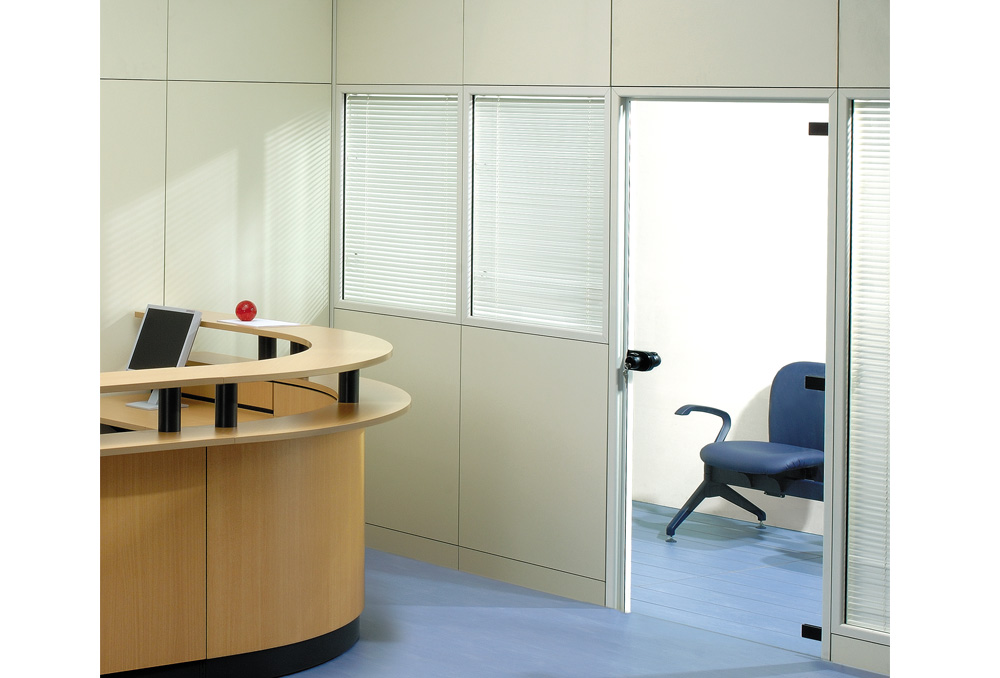

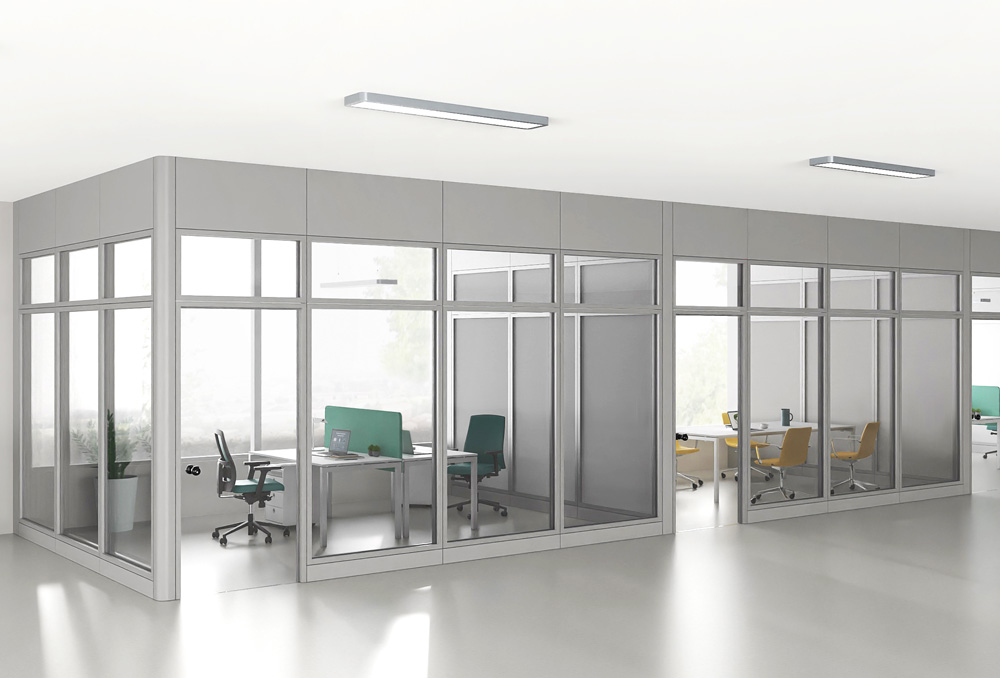

The partition wall system PRISMA 2000 (floor to ceiling) with the vast range of wall sizes allows for unlimited interior modifications at working spaces. They are easy to shift (without any loss) and allowfor the addition or reduction of modules thus permitting future configurations of space depending on the firm’s strategy and positioning.

They PRISMA partitions consist of an internal load-bearing metal frame (vertical perforated and horizontal galvanized steel tubes with rectangular cross-section) on which panels of various materials are attached. The total thickness of the partition is 10cm.

The exceptional thermal insulation qualities of the partition can be further increased (optionally), through the use of layers of stone or glass wool.

At doors and windows there are frames made of aluminium profile, in grey, metal grey, beige or anthracite powder coating.

With special elements at the top and bottom areas, the partitions have full adjustment capability even to non-horizontal floors and ceilings.

The panels for the rigid partitions are made of a 3-layer chipboard with 18mm thickness, covered on both sides with oak veneer or melamine in light grey, beech, cherry or maple finish.

Doors have a 40mm thickness and are covered all over (including the edges) with HPL or with oak veneer. They are attached using stainless steel hinges and have safety locks.

Glass panels are 4mm thick and are attached with a special elastic seal to the window frames.
They can have blinds, either external (single glass) or internal (double glass).
